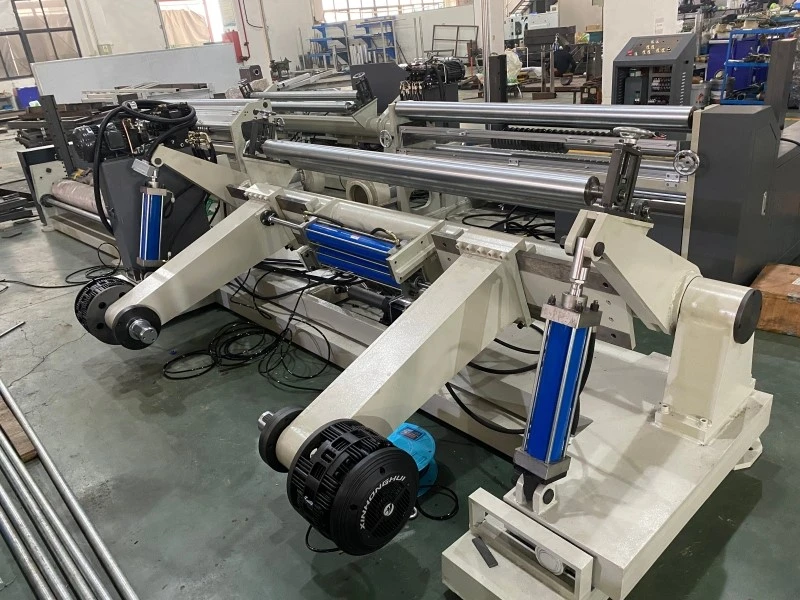

CFFQ-200 Paper Slitting Machine
Description
|
Technical Parameter |
|
|
Material paper |
60-600gsm |
|
Unwind width |
600-1600mm |
|
Unwind diameter |
1300mm |
|
Rewind diameter |
1300mm |
|
Minimum slitting width |
35mm |
|
Working speed |
0-150m/min |
|
Speed regulation |
by inverter |
|
Material paper loading device |
Shaftless |
|
Loading |
Automatically by Hydraulic |
|
Unloading |
Automatically by Hydraulic |
|
Power supply |
380V 50Hz 3Phase |
|
Rewinder device |
Air expanding shaft |
|
Jumbo paper loading device |
1 pair (76mmID) |
|
Hydraulic lifting device |
1 set |
|
Discharging air cylinder |
1 piece |
|
Braking device |
2 pieces (air brake) |
|
Blades |
20 sets (top & bottom) |
|
Operating box |
1 set |
|
Tool |
1 set |
|
Curved roller |
Have |
|
Measurement |
L3300*W1200*H1200mm (unwind side) L3000*W1700*H1100mm (rewind side) |
|
Weight |
3000kgs |
