High Speed Paper Bowl Forming Machine
Model:JBZ-150W
Cup size:6-44OZ
Raw material:Single and double PE coating paper
Paper thickness Body:160-350gsm Bottom: 150-250gsm
Description
Specification
|
Model |
JBZ-150W |
|
Cup size |
6-44OZ |
|
Raw material |
Single and double PE coating paper |
|
Paper thickness |
Body: 160-350gsm Bottom: 150-250gsm |
|
Top mouth diameter |
100mm-150mm |
|
Bottom diameter |
80mm-125mm |
|
Bottom depth |
5mm-12mm |
|
Height |
60mm-130mm |
|
Angle |
4-8° |
|
Capacity |
100-120 pieces per minute |
|
Total power |
23kw |
|
air consumption |
0.4m3/min, 0.5-0.8Mpa |
|
Weight |
4500kg |
|
Dimension |
2700x1550x1720mm |
Machine detail

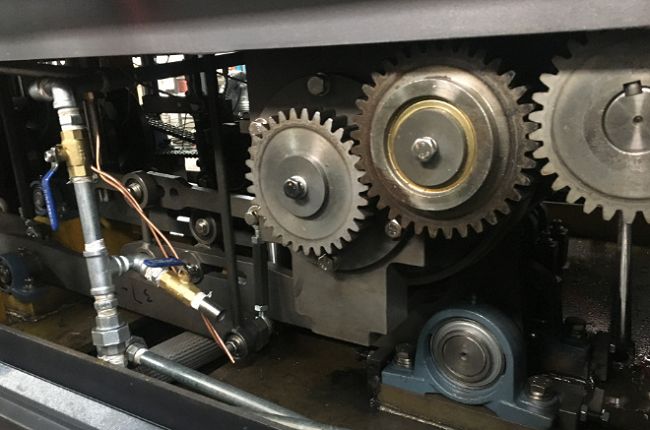

1.Open cam transmission system. Unique hanging cam design to reduce pollution.
2. Automatic lubrication system. Save your labor and easier your daily work.
3.Aluminum Mold, longer using life with less abrasion.
4. Ultrasonic unit guarantee fast and good quality sealing.
5. Double curling system, make sure the best curling effect
6. Bottom paper feeding uses servo motor.
7. Using two heaters to heat up the bottom, ensure the bottom sealing and guarantee high speed production.
8. PLC control system
