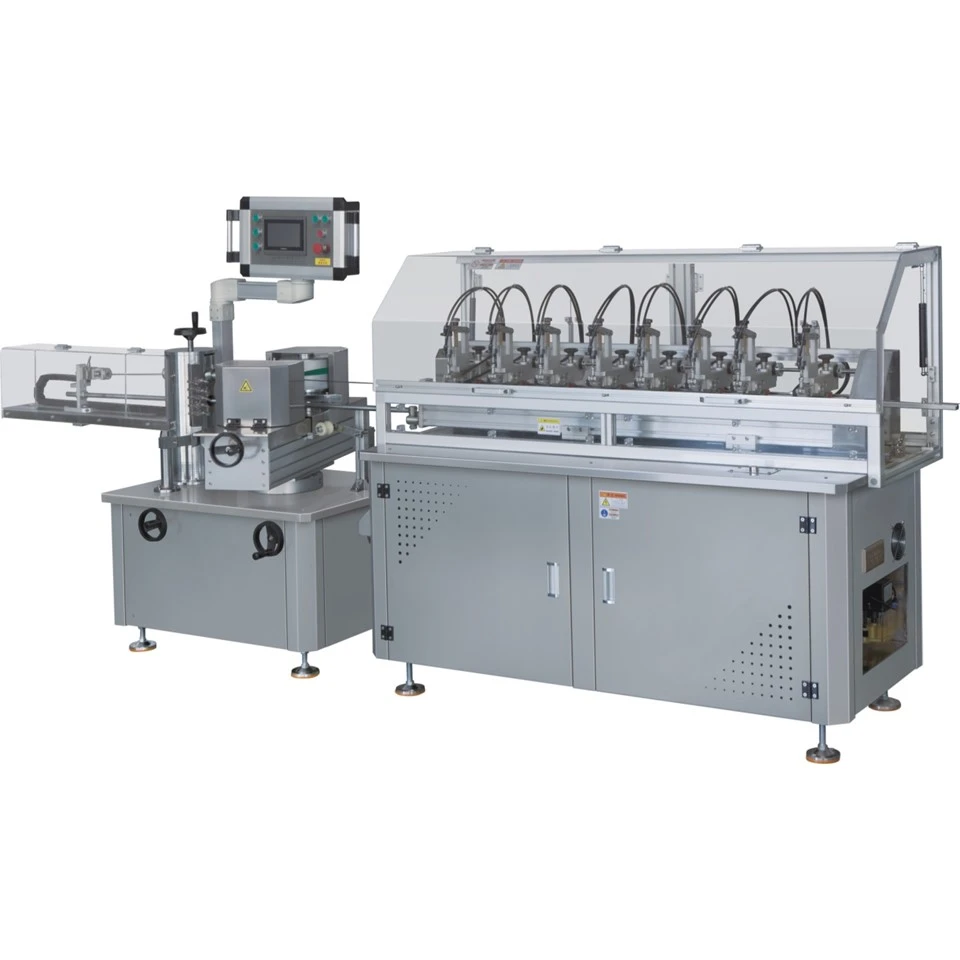

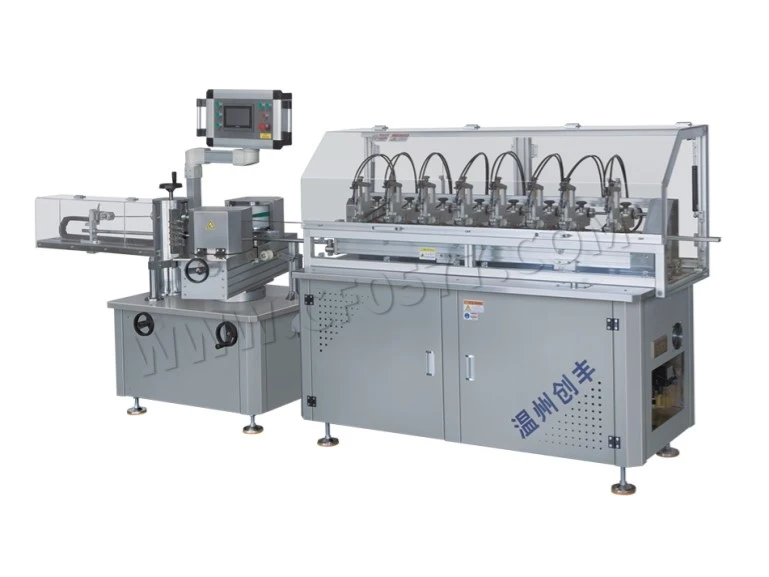

100 M/min Paper Straw Machine
Ice cream cone forming machine is a highly efficient and fast machine that is used to produce ice cream cones. This machine has proven to be very useful in the ice cream industry, as it helps in producing large quantities of cones with high precision and accuracy.
Description
|
Technical Parameter |
|
|
Paper Layer |
4 layers |
|
Inner Diameter |
3.8-13mm |
|
Winding Speed |
0-100meters/min |
|

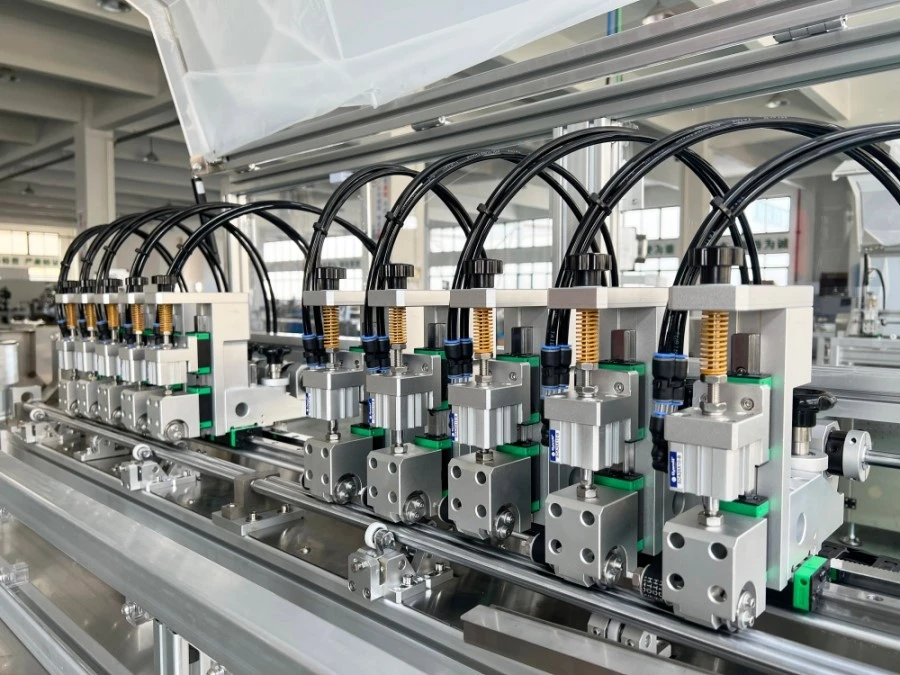

Cutting System |
Multi-blades (9 pcs) |
|
cutting system |
Servo motor synchronism tracking cut |
|
Gluing Way |
Single/Double sides |
|
Machine & Parts |
Stainless Steel |
|
Automatic Paper Connection |
Include |
|
Operator |
1-2 person |
|
Speed Control |
By Servo Driver |
|
Power Supply |
380V/3Phase/50Hz |
|
Main Machine Control System |
|
|
Main Servo Motor |
2.0KW |
|
Cutting Motor |
stepping motor |
|
PLC and Touch Screen |
Panel Master |
|
Pneumatic Components |
Air Tac or Jingwei |
|
Electric Components |
Schneider |
|
Bearing |
NSK |
|
Servo Motor/Driver |
3kw Schneider |
|
Guide Rail and Slider |
THK or Shangyin |
|
Configuration |
|
|

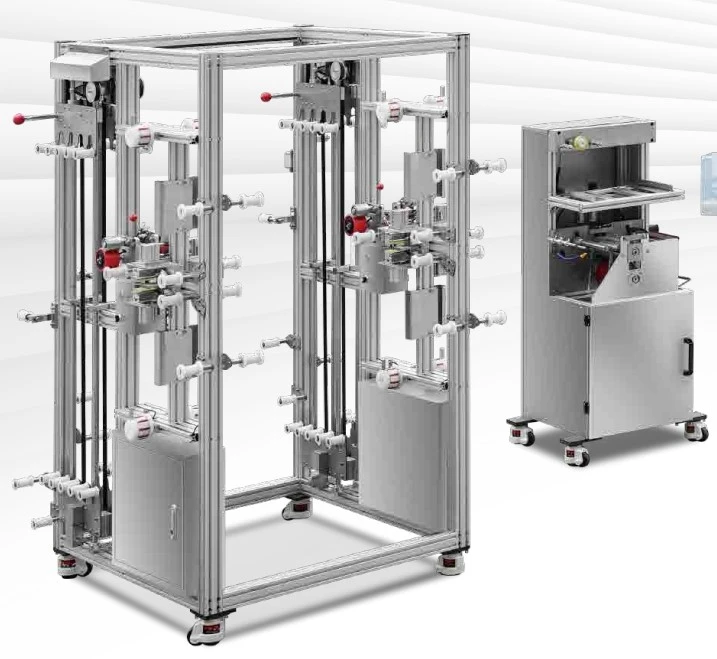

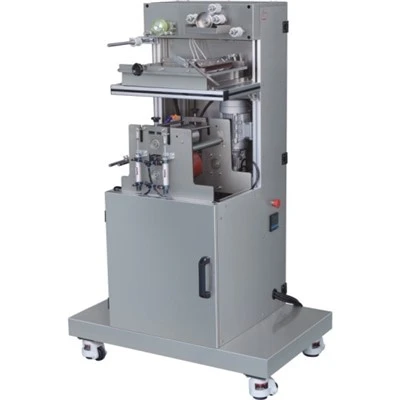

Automatic Paper Connection |
4 Layers |
|
Belt |
5 Pieces |
|
Mandrel Shaft |
2 Pieces |
|
Useful Tool |
1 Set |
|
Measurement & Weight |
|
|
Main body Measurement |
4350*1500*1750mm |
|
Automatic Paper Connection |
3400*2430*2100mm |
|
Working Space |
8000*5000mm |
|
Weight |
1800kgs |

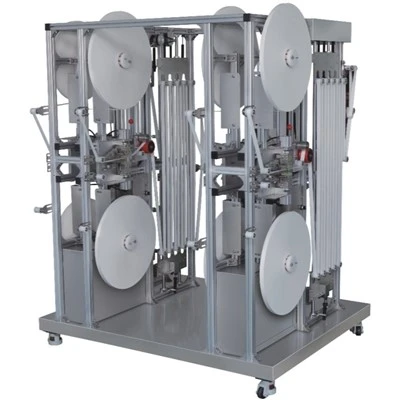

Automatic Paper Connection
